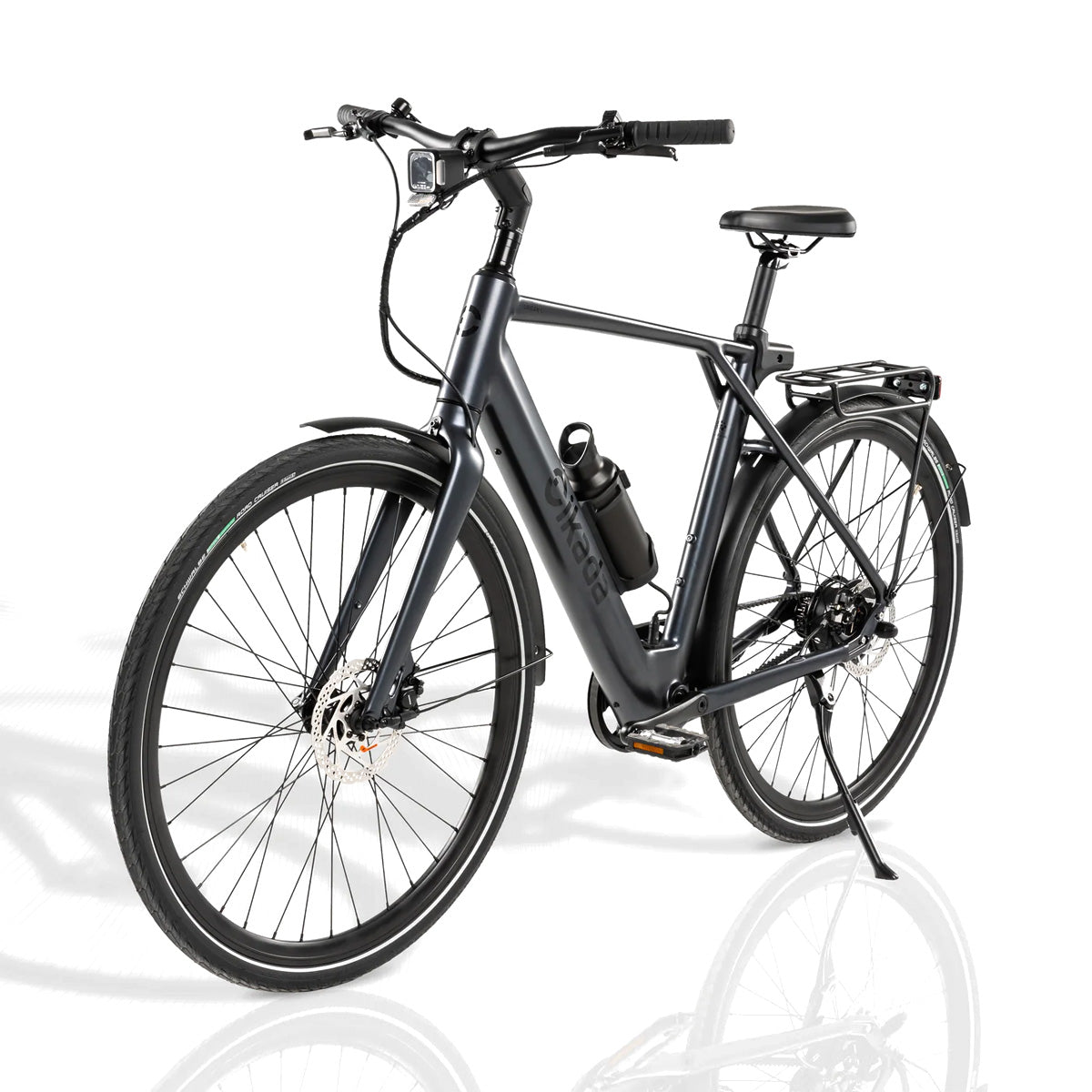

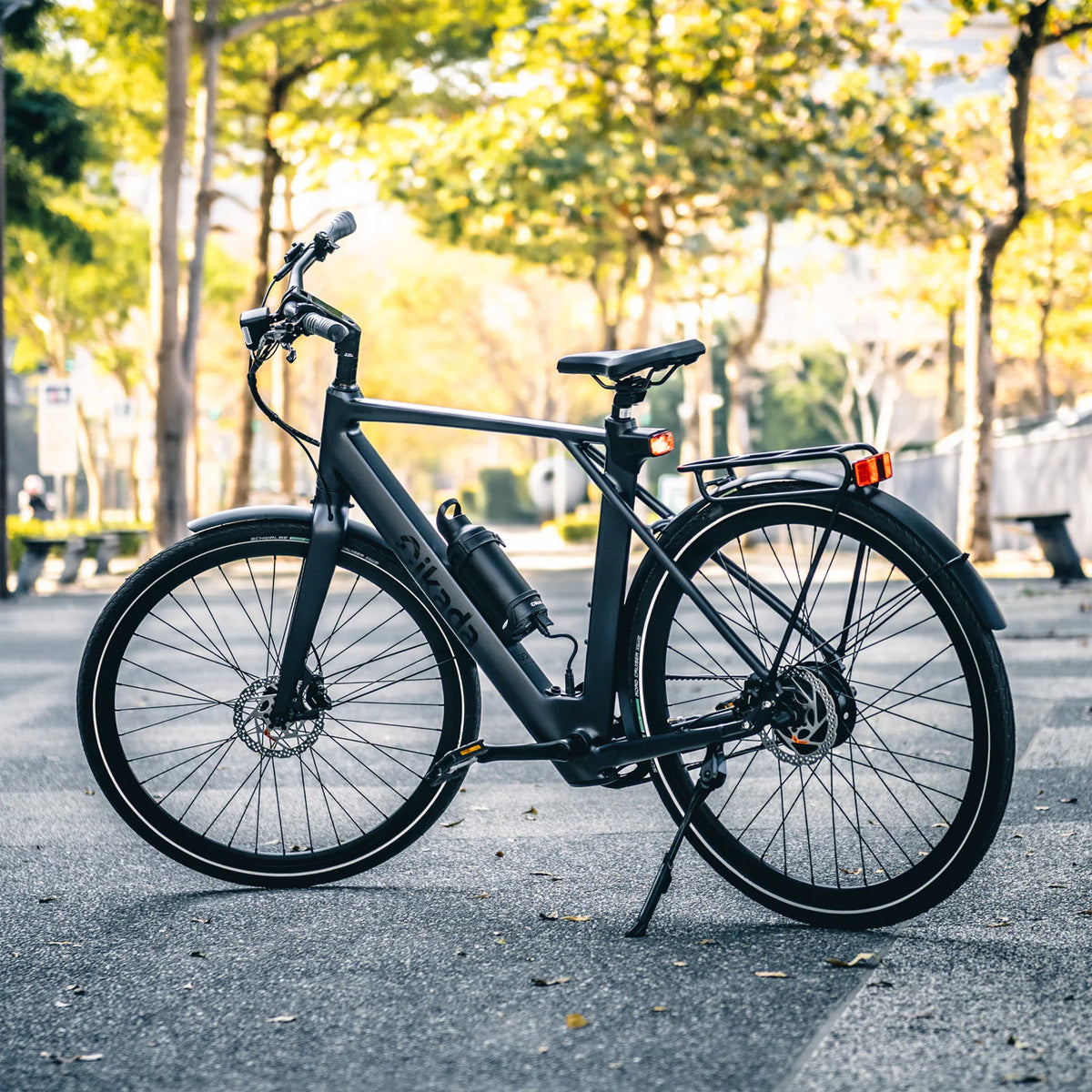

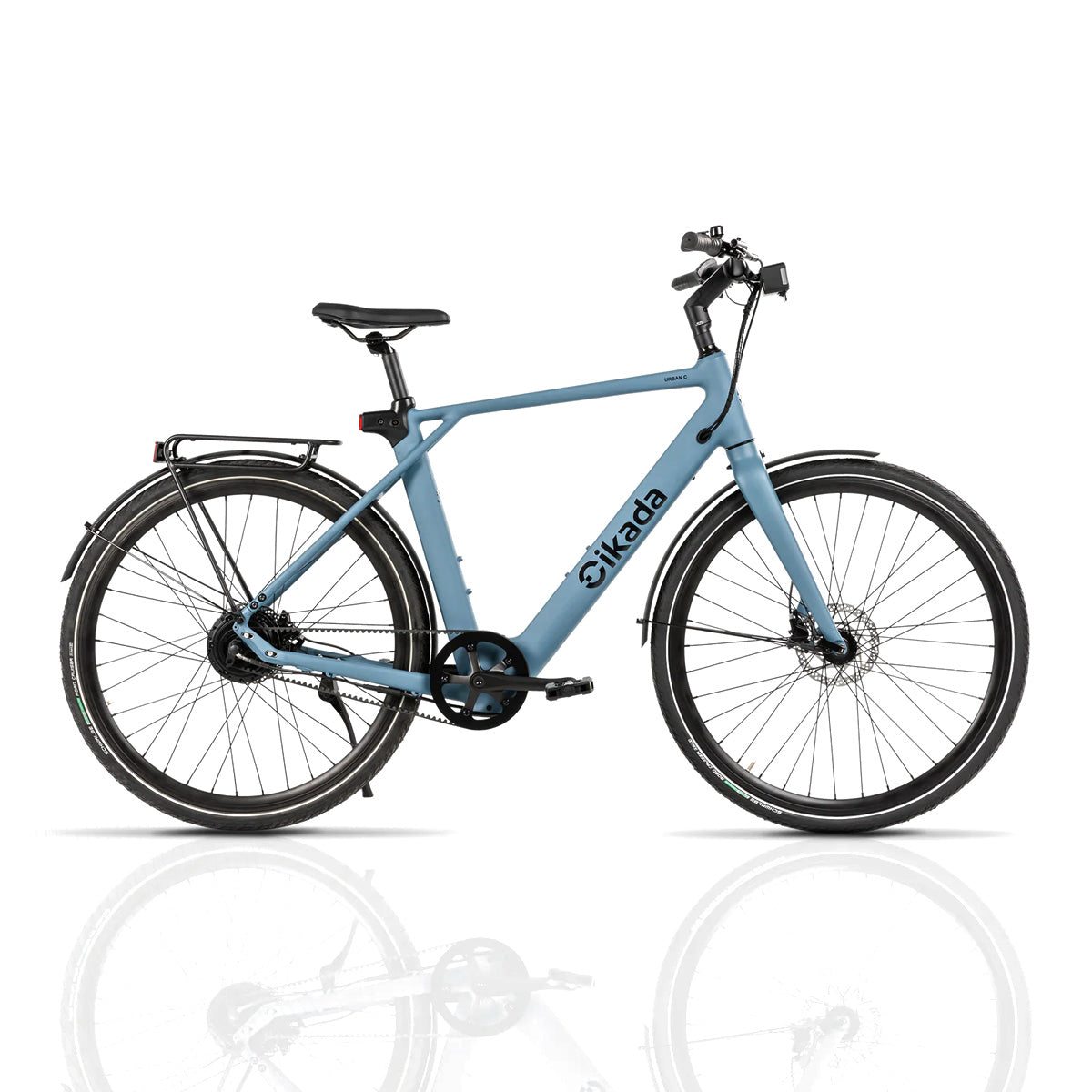

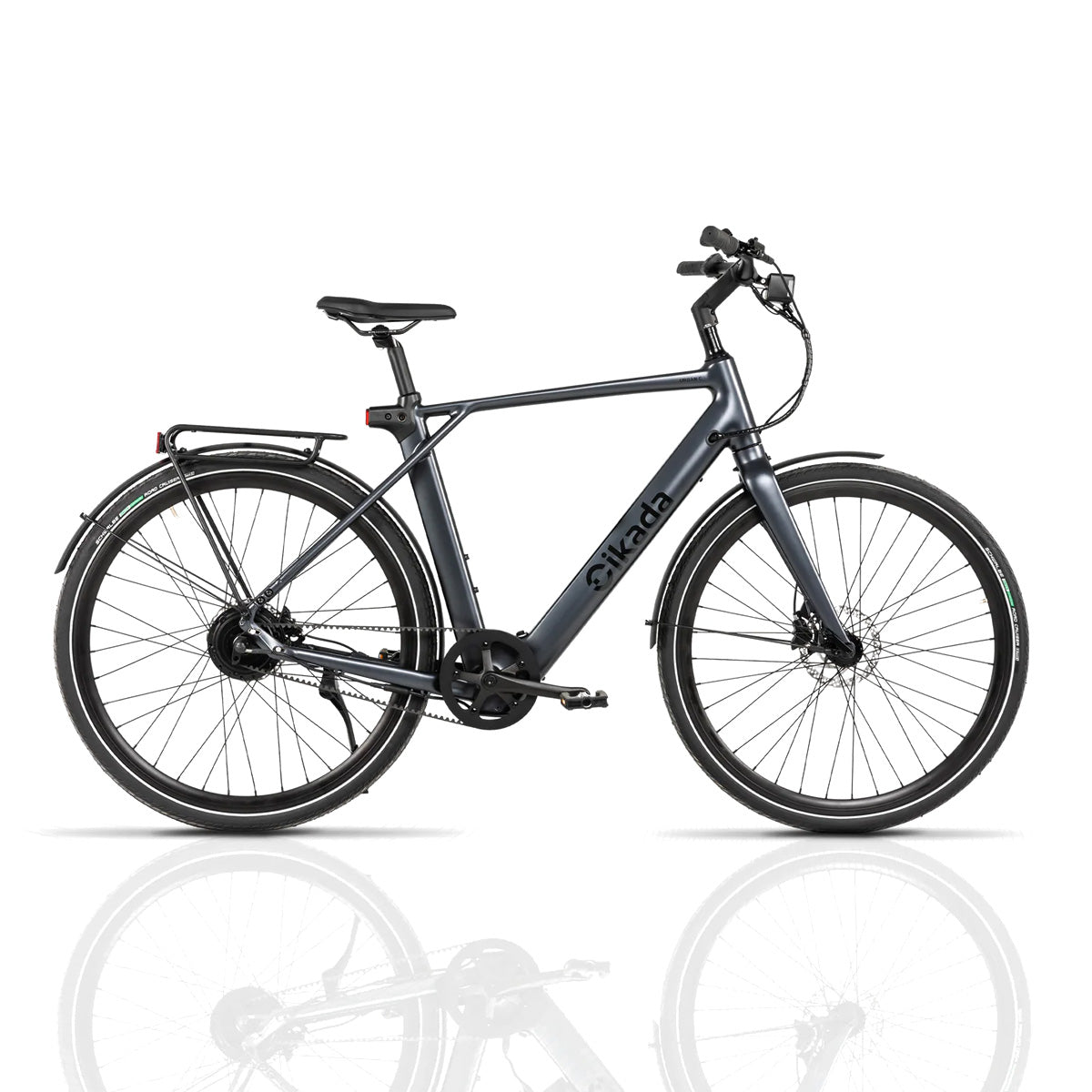

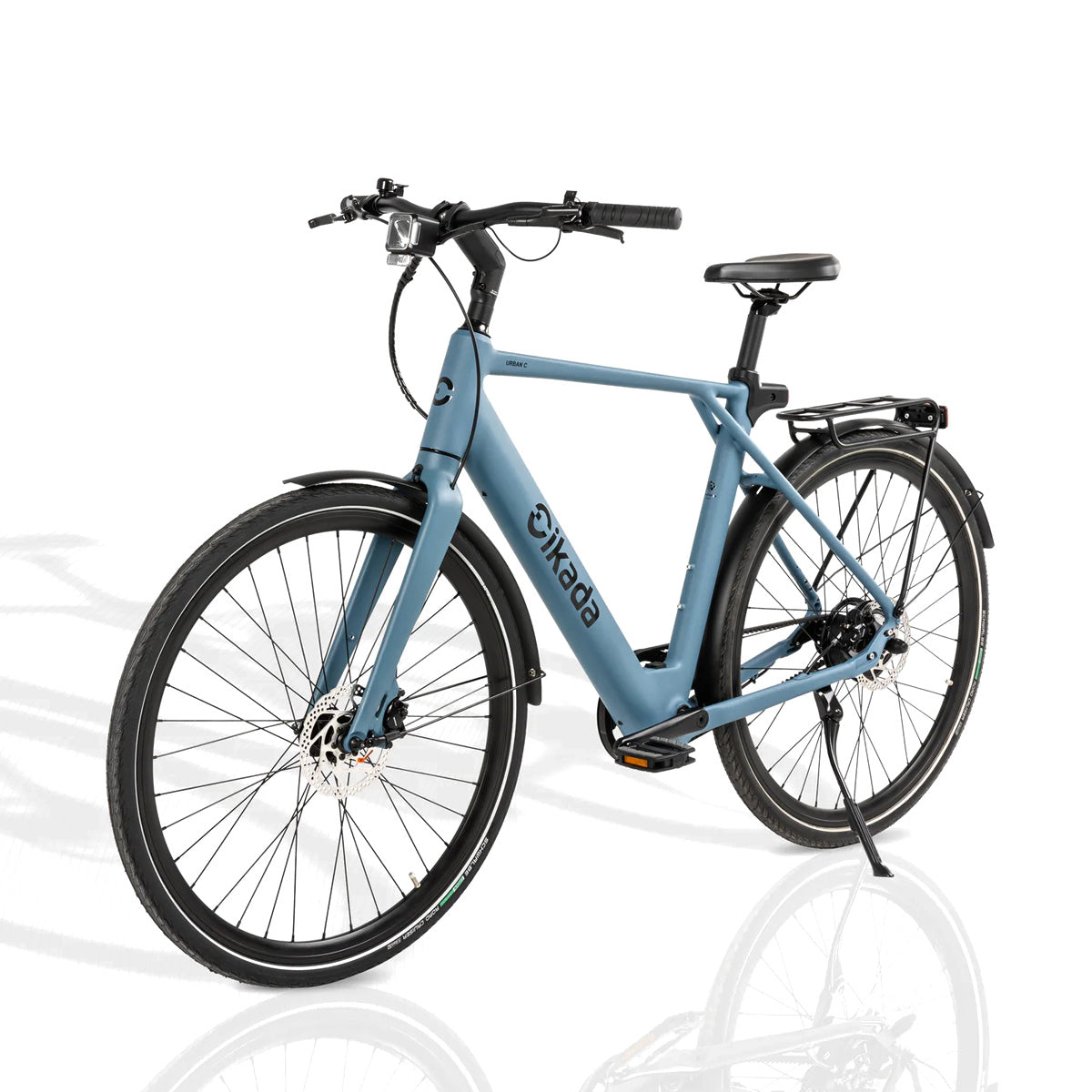

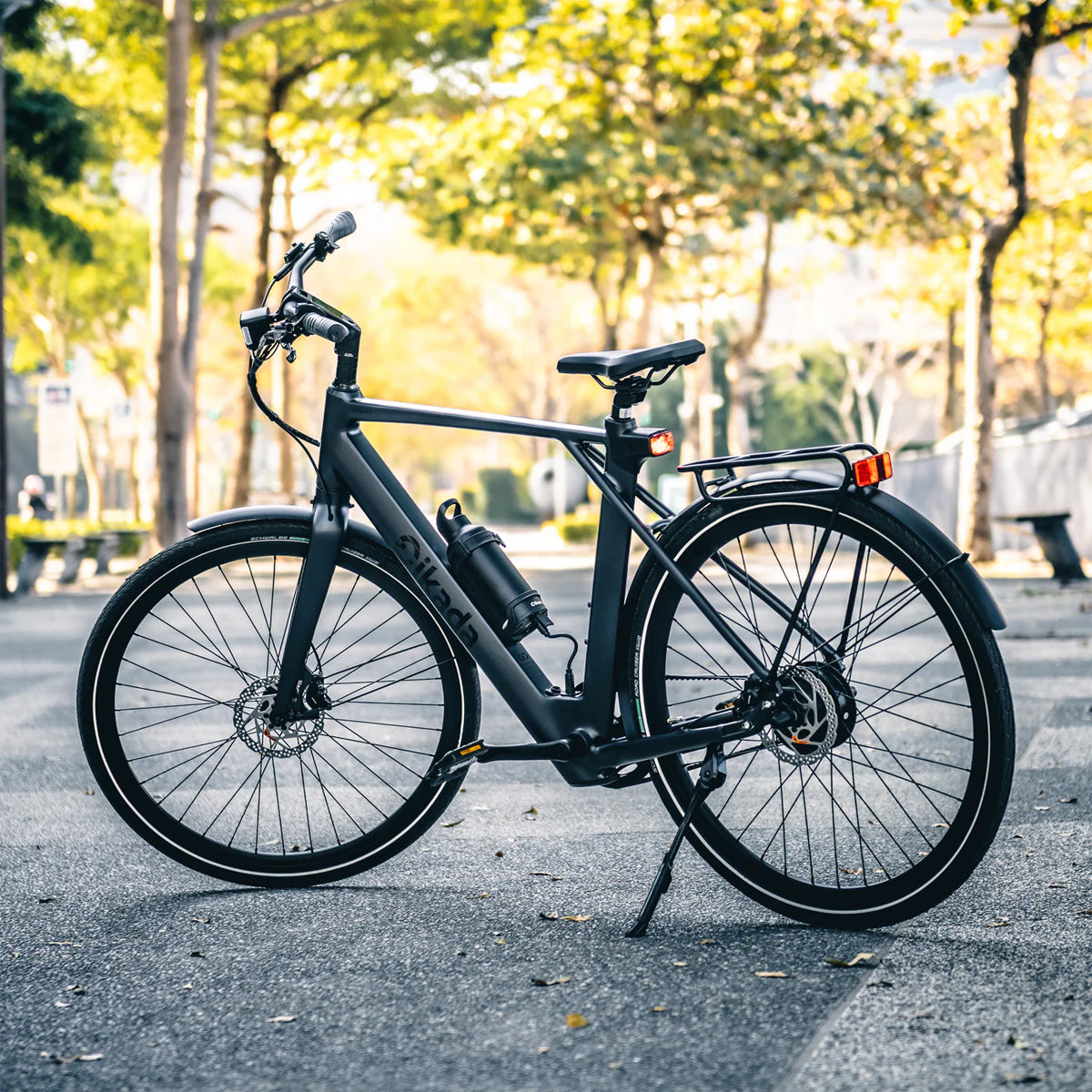

Cikada Urban Cruise Electric Hybrid Bike

Designed for relaxed urban riding, the Urban C is a low-maintenance commuter e-bike built for everyday convenience and effortless cruising. Its clean, single-speed design removes the need for gear shifting, reducing upkeep while delivering a smooth, intuitive ride - perfect for city streets and suburban routes.

A responsive 250W rear hub motor produces 40Nm of torque, making hills and stop-start traffic easy to manage. Powered by a premium Samsung 353Wh in-tube battery, the Urban C delivers up to 60km (37mi) of assisted range, extendable to 90km (56mi) with an optional bottle battery thanks to its dual-battery-ready system.

Smart features enhance the experience with DynaForce multi-sensor technology for a natural riding feel and a stem-integrated TFT display with Bluetooth connectivity for the Cikada app, allowing riders to track rides, analyse data and manage assistance modes. With its agile fixie-style frame, Shimano hydraulic disc brakes and natural ride feel, the Urban C offers a stylish, efficient and stress-free way to move through the city.

• Dual-battery-compatible setup for extended commuting range
• Assisted range up to 60km (37mi), expandable to 90km (56mi) with optional bottle battery
• Pedal assistance up to 25kph (15.5mph)
• Smooth, relaxed riding feel for effortless cruising
• High-quality Samsung 353Wh in-tube battery
• Clean, simple design focused on comfort and ease of use
• Single-speed drivetrain for low maintenance and stress-free riding
• Stem-integrated TFT display with Bluetooth and Cikada app connectivity for smart e-Bike control system
• 40Nm of torque for confident hill climbing
• Sleek, agile fixie-inspired frame design
• Blends efficiency, style and smart technology for modern urban mobility
• Ideal everyday e-bike for commuters seeking reliability and simplicity

Power System

• Motor: DynaForce ACM4EB0129A0 250W rear hub motor; 40Nm (OLD: 137.5mm/cassette/disc brake)
• Battery: Samsung 21700/36V/9.8Ah/353Wh, internal down tube battery; 4-6h charging time

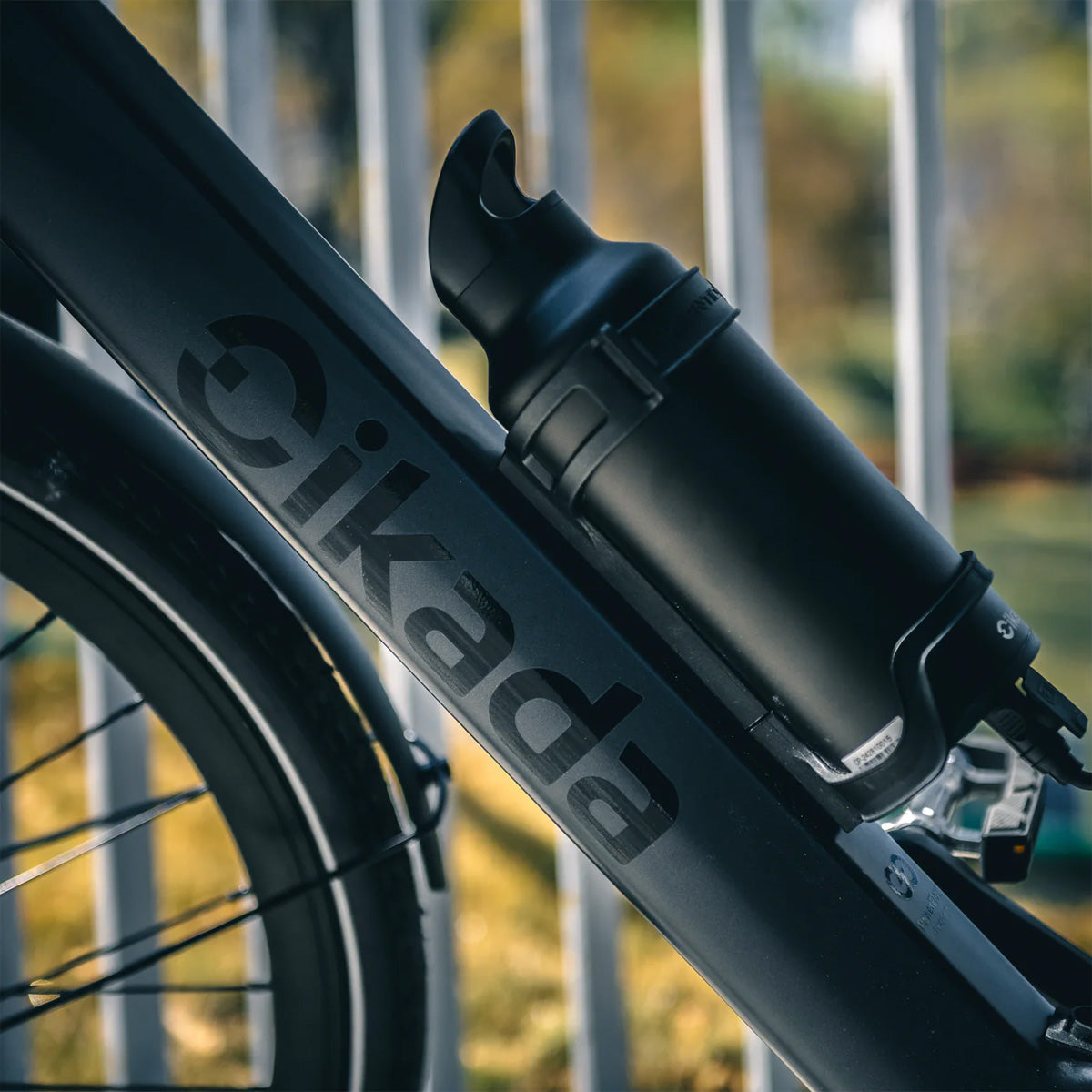

• Additional Battery: Samsung 18650/36V/250Wh, water bottle battery (optional extra)
• Riding Range: up to 60km (37mi) with main battery and up to 90km (56mi) with the optional water bottle battery
• Display: Stem integrated display with Bluetooth (2”/TFT/36V); 3 modes, km/mi switch, walk assistance, battery indicator, lighting control, speed display, time display, motor output power indicator, energy consumption indicator, support levels, information view, error message view
• Torque Sensor: Yes

Interactivity

• Compatible Applications: Cikada Connect app

Frameset

• Frame: 6061 aluminium (700C x M500mm (19.7”)/ L 540mm (21.2”)/ XL 580mm (22.8”))
• Fork: Aluminium 6061 T6, rigid fork, Old - 10mm x 100mm (0.4” x 3.9”)

Drive Train

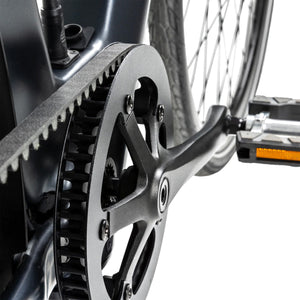

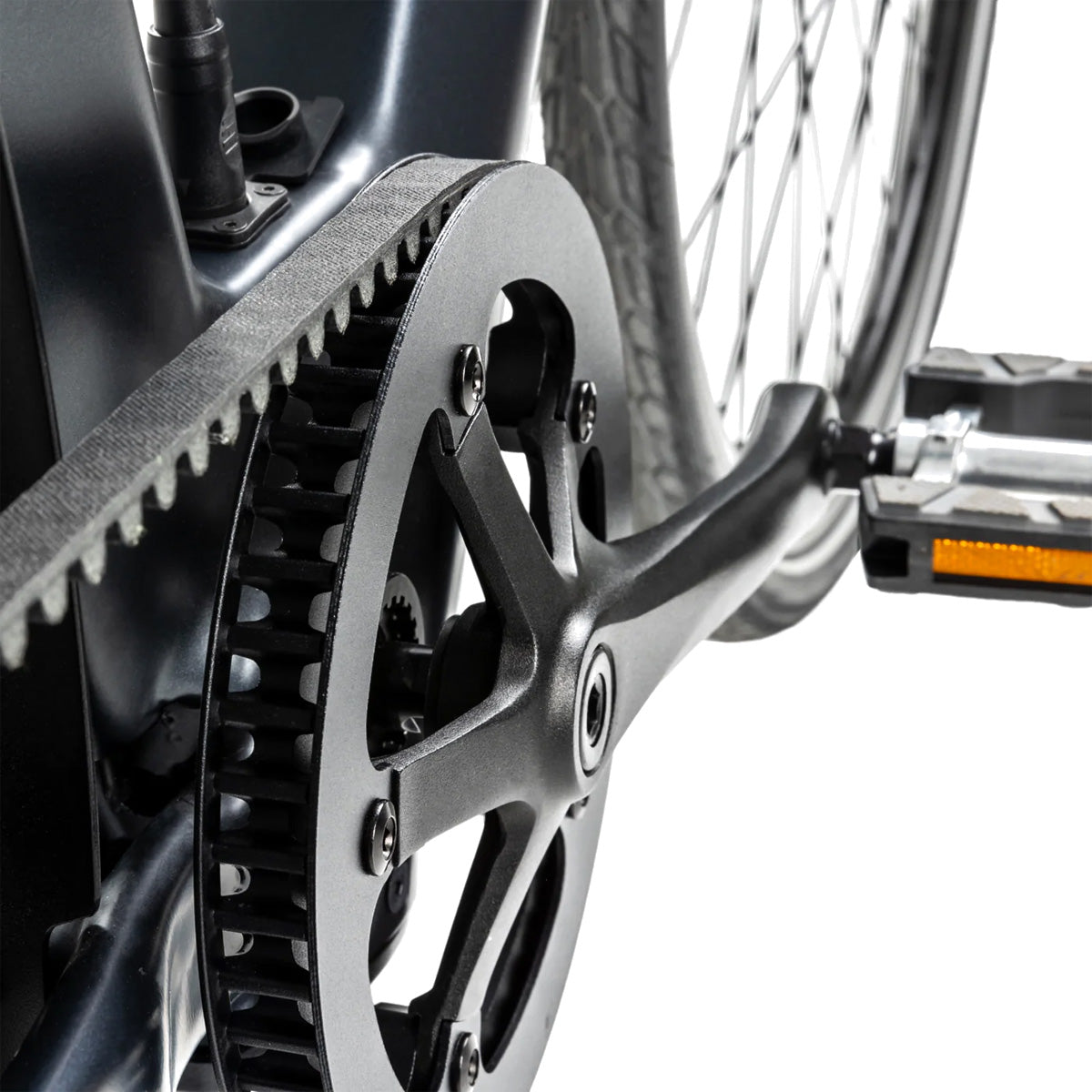

• Crankset: Alloy crankset + chainring + spider 5-arm for single torque B.B, crank length – 170mm (6.7”), 11M-52T
• Cassette: Rear sprocket, cassette, single speed; CR-MOLY 11M-20T-9K
• Chain: Dyaco belt drive

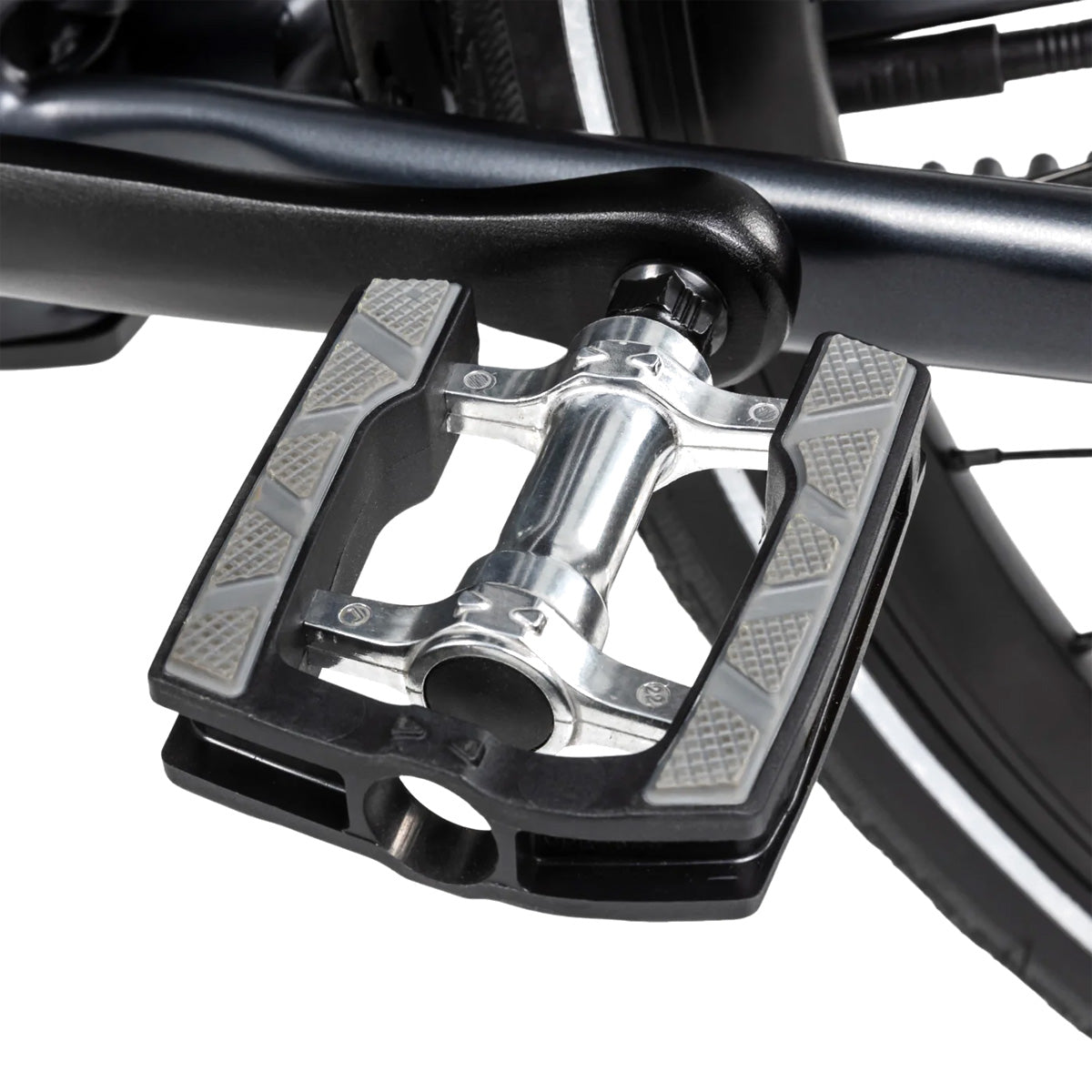

• Pedals: Alloy body steel boron axle 9/16”, Size - 106mm x 82.3mm (4.2” x 3.2”), with reflector

Wheels

• Tyres: Schwalbe Road Cruiser KGuard, 42-622 green 50 EPI
• Rims: 700C alloy double wall rim, ETRTO - 622 x 18.8, 36H x 13G
• Front Hub: 36H x 13G, O.L.D – 100mm (3.9”), CR-MO hollow axle, W/QR
• Rear Hub: Hub motor
• Spokes: 13G stainless black spokes, with 14mm brass nipples

Components

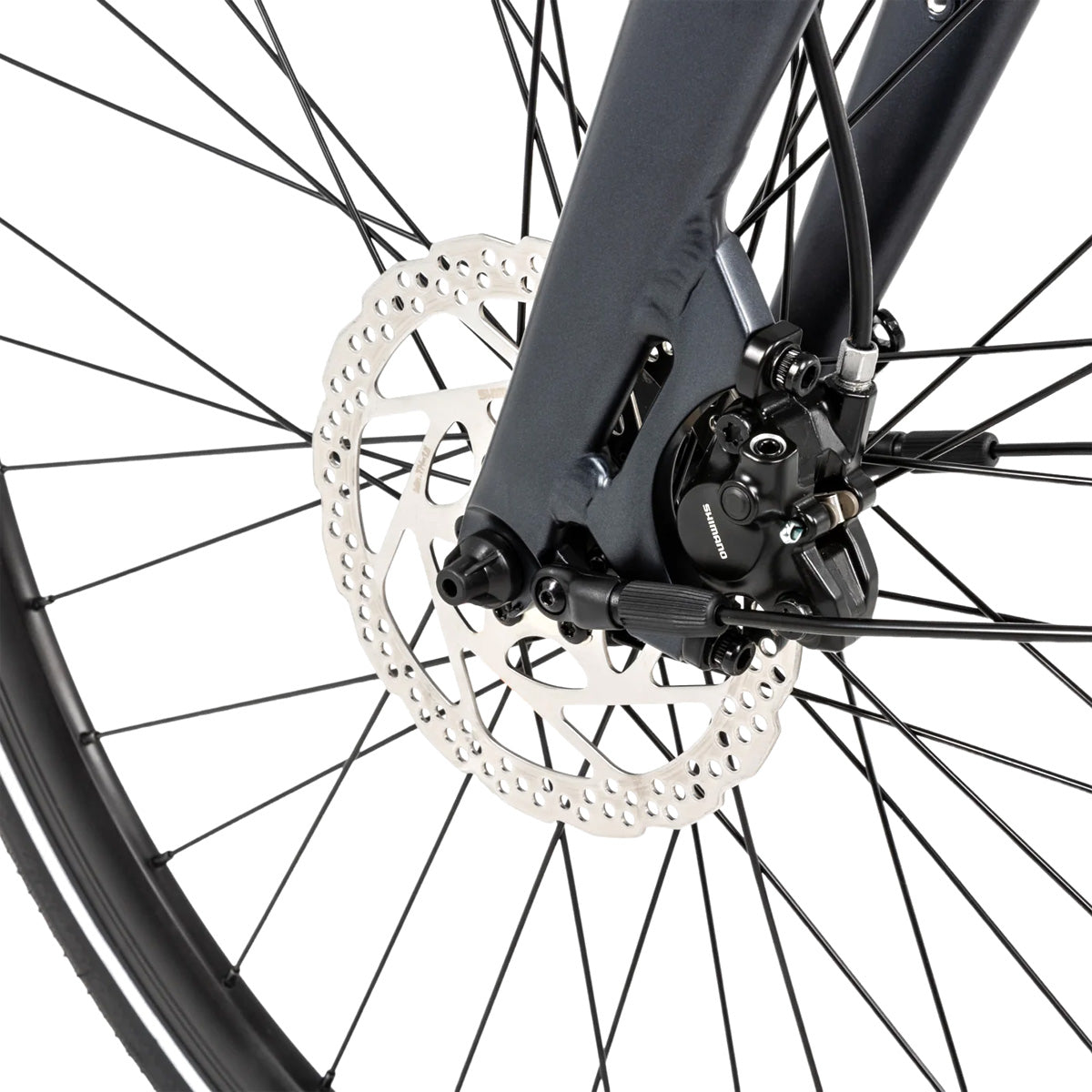

• Brakes: Shimano hydraulic disc brakes, 160mm (6.3”) rotor, MT120

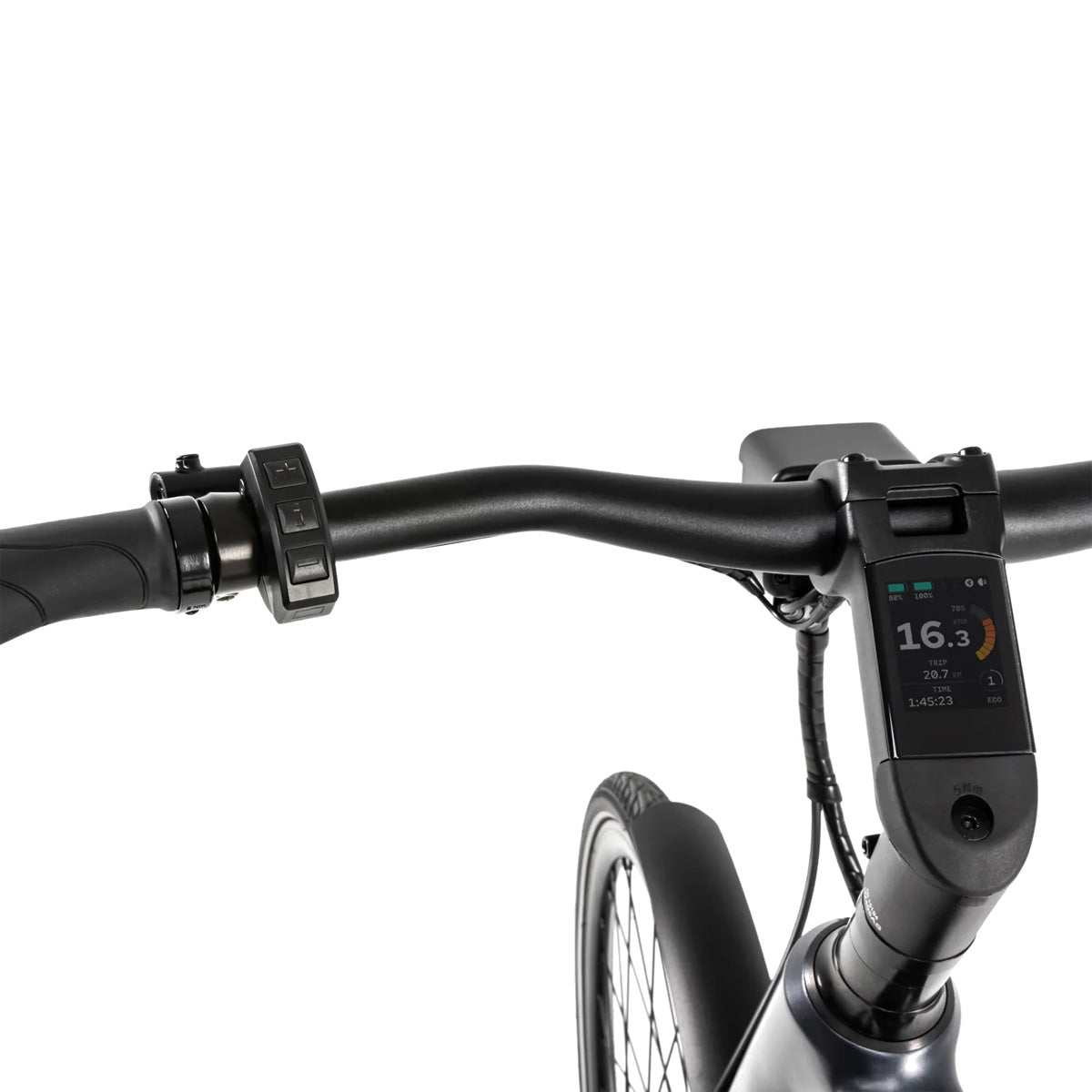

• Handlebar: Alloy 6061 PG, Width - 630mm (24.8”) M/ 680mm (26.7”) L&XL, Barbore - 31.8mm (1.25”), Backsweep - 15°

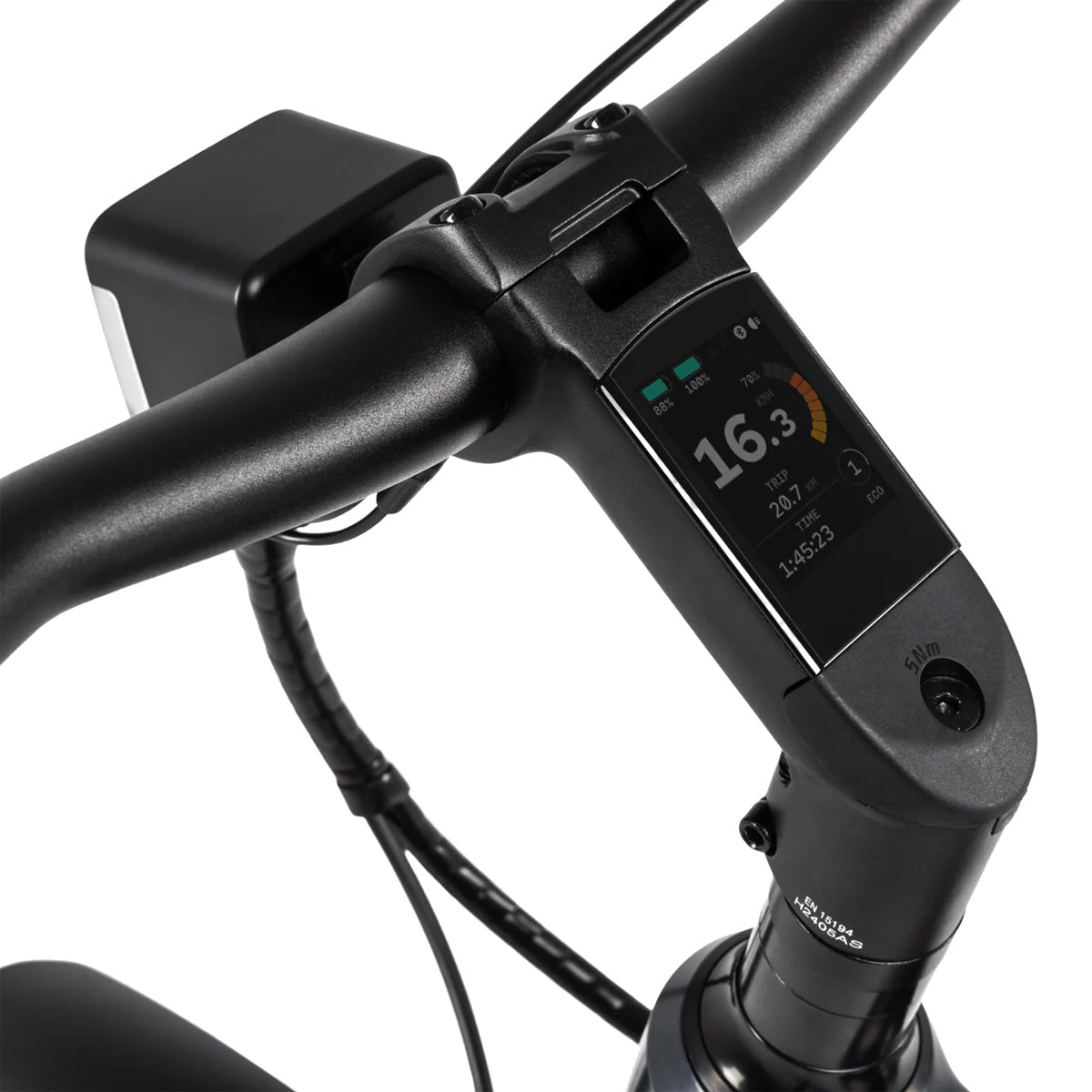

• Stem: One-piece display stem (Zoom Stem), Barbore - Ø31.8mm (1.25”), Extension - 100mm (3.9”)
• Headset: Semi-integrated threadless 1-1/8” x 44/50x55/61x30

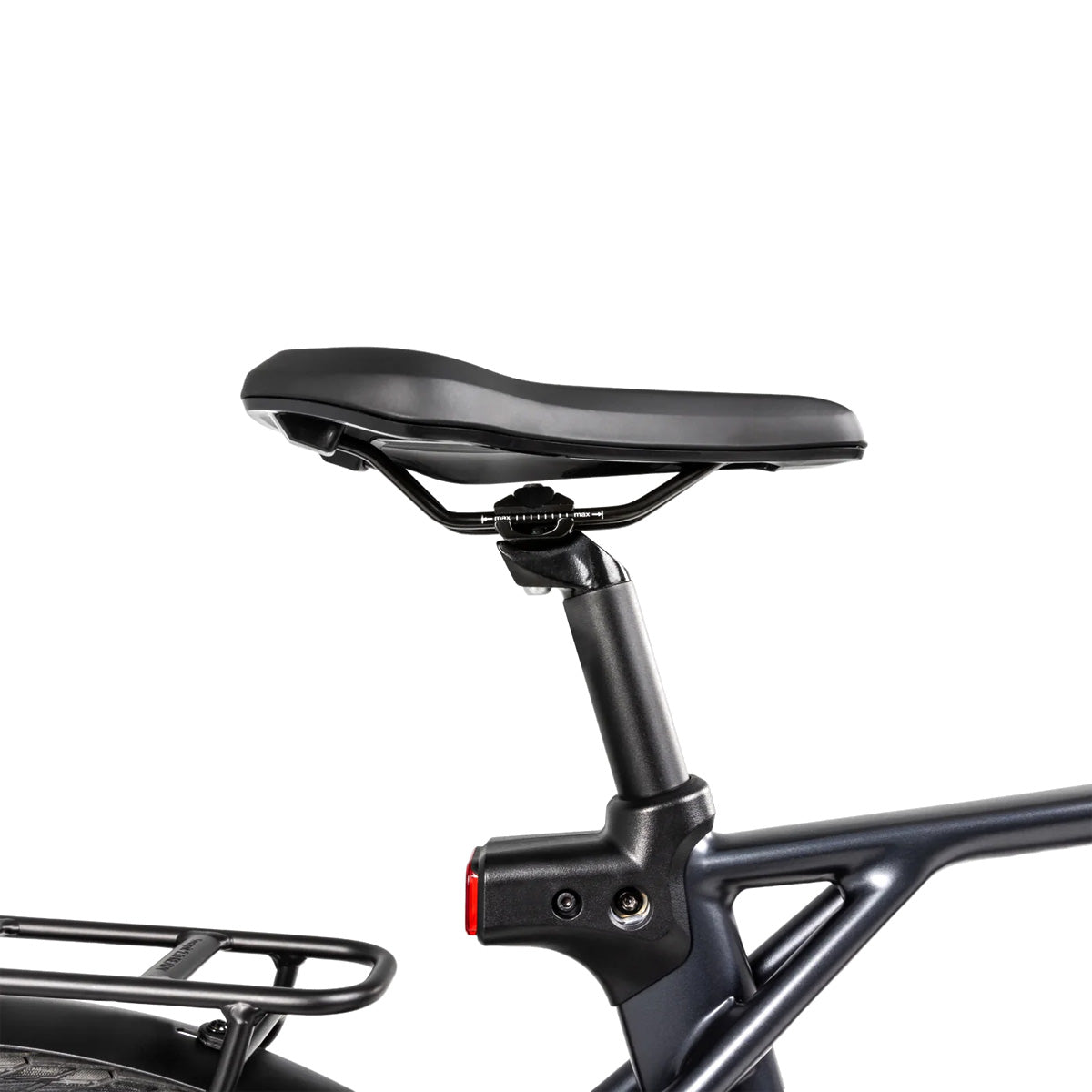

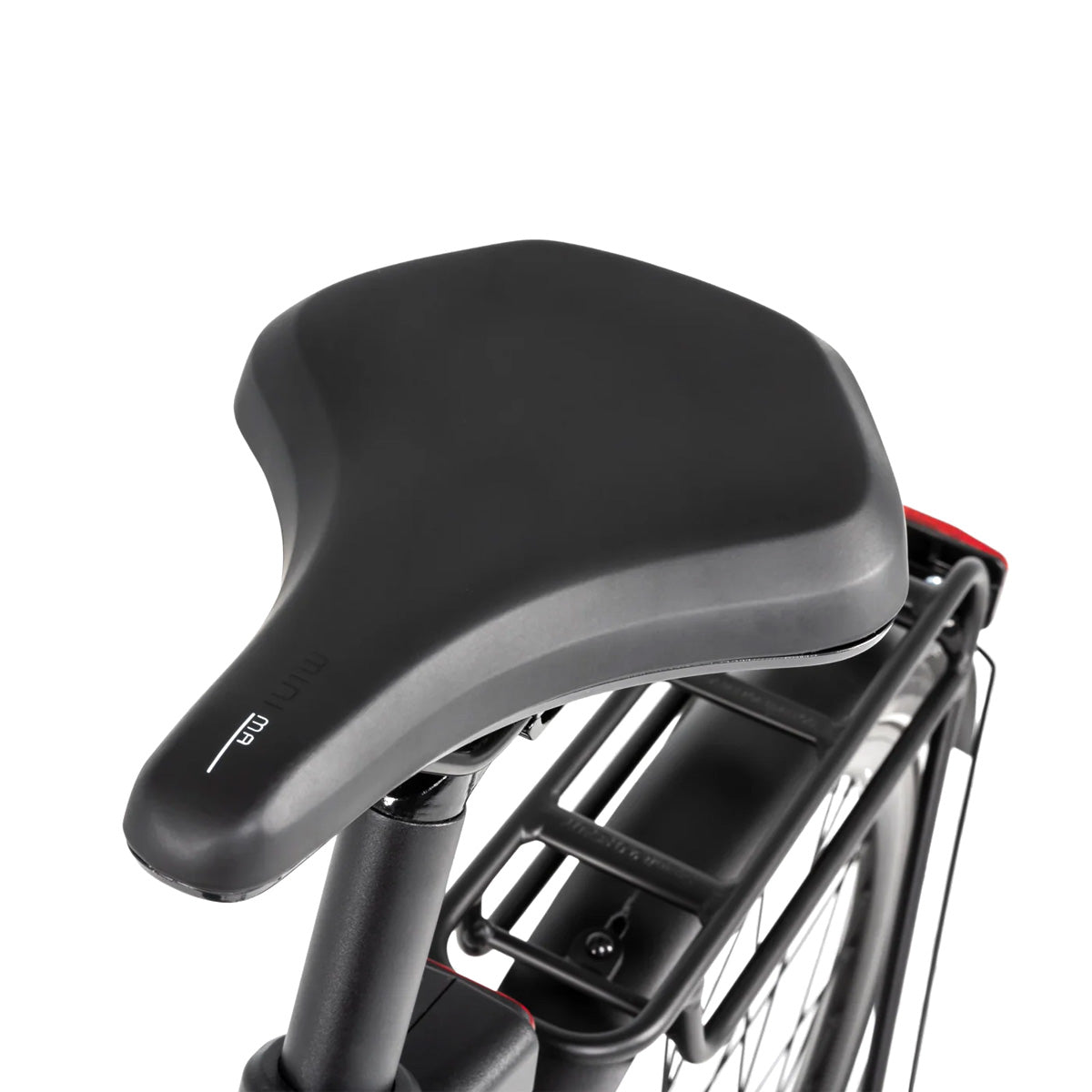

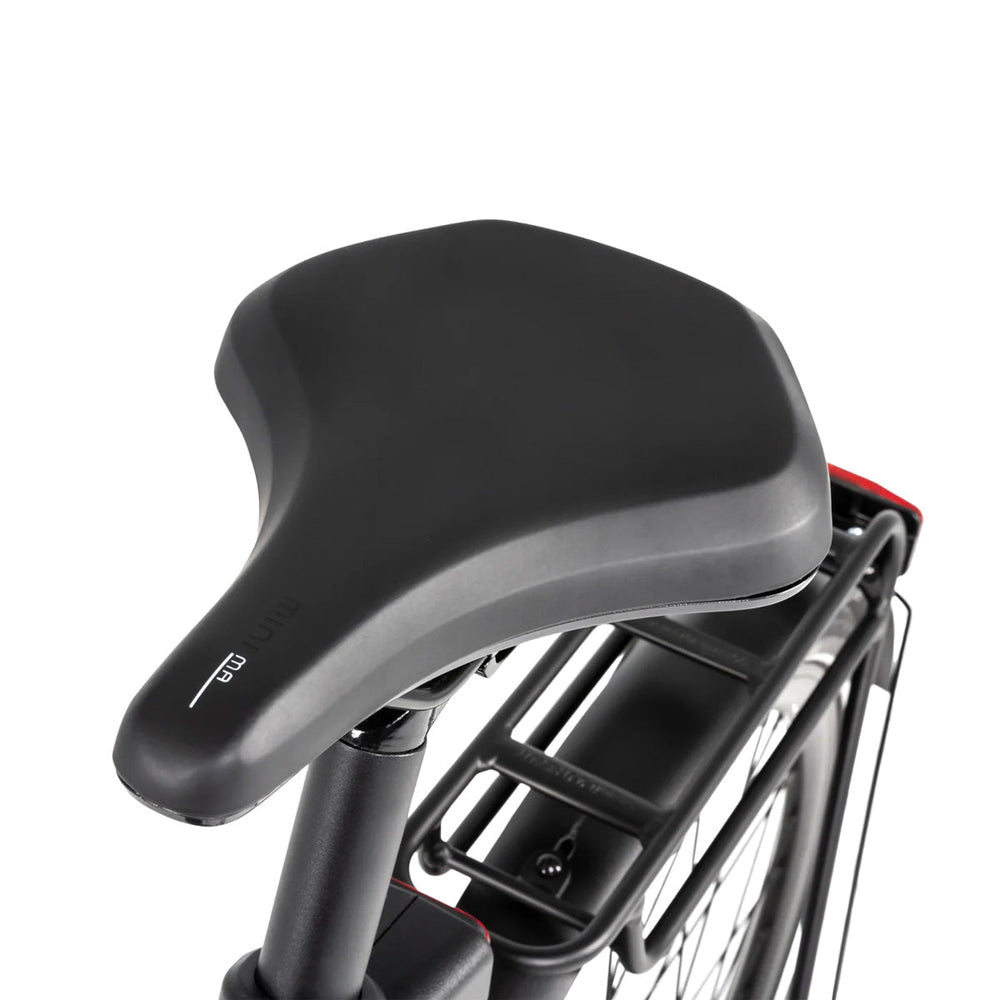

• Saddle: Ergonomic saddle; Size - 264mm x 194mm (10.4” x 7.6”), Material - Support PU foam, Base: PP, Leather: Black, seamless, Rail: Steel ED black with scale
• Seatpost: Die-casting alloy, Diameter - Ø 31.6, Offset 16mm (0.6”), Length - 300mm (11.8”) M&L/ 350mm (13.7”) XL
• Grips: Hard plastic black/ VEXT, 133mm (5.2”), with black plastic clamp, close end
• Bottom Bracket: Torque sensor single, BB 73/ JIS

Additional Information

• Product Weight: 21kg (46lbs)
• Maximum User Weight: 120kg (264.5lbs)

Size Options

• M: 20” (50cm) for riders between 5’3” - 5’9” (160cm - 175cm) in height
• L: 21” (54cm) for riders between 5’7” - 6’1” (170cm - 185cm) in height
• XL: 23\" (58cm) for riders between 5’11” - 6’5” (180cm - 195cm) in height

Accessories

• Head light
• Tail light
• Kickstand
• Fender
• Bell

Warranty

• Frame: 2 years - 5 years after warranty activation via Cikada Connect App or Cikada Care
• Suspension Fork: 2 years
• Electronics (Excluding Battery): 2 years
• Battery: Up to 600 charges or 2 years, whichever comes first
• Accessories: 1 year
• All Other Non-wearing Components: 2 years
